Explore Denmarks Letters (Danmarks Breve)

Script Summary

This notebook explores a dataset constructed from the XML sources behind the Royal Danish Library’s digital Danmarks Breve collection, which holds 13,000+ printed letters and metadata.

Steps:

• Load the harmonised bibliographic dataset, Denmarks_letters_dataset.csv, derived from the XML files and inspect schemas for key entities (sender_st, recipiant_st, text_st, year_st).

• Build directed correspondence networks for selected time windows, compute centrality summaries, and visualise letter flows between prominent individuals.

• Aggregate letters per sender and run TF–IDF analysis to surface each sender’s 15 most distinctive words.

• Prepare helper tables (_top_senders_df, sender_tfidf_top_words) for downstream analysis or export.

Outputs: Network statistics/plots, sender-level TF–IDF tables, and dataframes ready for further historical or linguistic study.

Dataset: To download the dataset follow go to the Library’s Open Access Repository.

Digital Collection: To close read the letters in Denmarks Letters go to the Letter Collection.

---

# Core libraries and configuration
import pandas as pd
import warnings

# Network analysis and plotting
import networkx as nx
import matplotlib.pyplot as plt
from sklearn.feature_extraction.text import TfidfVectorizer

# Suppress sklearn stop-word warnings triggered by OCR artefacts
warnings.filterwarnings('ignore', category=UserWarning, module='sklearn.feature_extraction.text')

Load the dataset and inspect the shape, the columns, and the datatypes of the dataset.

# Read the data
dk_letters_st = pd.read_csv('Denmarks_letters_dataset.csv')

# Inspect the shape of the dataset
dk_letters_st.shape

(13516, 20)

# Inspect available columns
dk_letters_st.columns

Index(['url', 'sender', 'sender_st', 'recipiant', 'recipiant_st', 'geo_name',
       'raw_date', 'raw_text', 'year_st', 'text_st', 'word_count',
       'geo_name_st', 'xml_file_name', 'pubTitle', 'pubAuthor', 'pubPublisher',
       'pubPublisher_st', 'pubPlace', 'pubPlace_st', 'pubDate'],
      dtype='object')

# Review column data types
dk_letters_st.dtypes

url                 object
sender              object
sender_st           object
recipiant           object
recipiant_st        object
geo_name            object
raw_date            object
raw_text            object
year_st            float64
text_st             object
word_count           int64
geo_name_st         object
xml_file_name       object
pubTitle            object
pubAuthor           object
pubPublisher        object
pubPublisher_st     object
pubPlace            object
pubPlace_st         object
pubDate             object
dtype: object

Filter and Subset the Data

Rows with missing values in the sender or recipient columns are filtered out. A subset of the data is created by selecting rows within a specific time period (1870-1885).

# Filter out rows with NaN in sender or recipient columns
dk_letters_filtered = dk_letters_st.dropna(subset=['sender_st', 'recipiant_st'])

# Create a subset of the data by selecting rows with values between two years
_from = 1870
_to = 1885
dk_letters_subset = dk_letters_filtered.query(f'year_st > {_from} and year_st < {_to}')

# Inspect the shape of the subset
dk_letters_subset.shape

(1236, 20)

Who wrote to whom? Network analysis with NetworkX

First we filter the dataset to a specific period and build a directed graph where edges connect senders to recipients. We then inspect degree-based rankings and visualise the full network as well as a view of the top correspondents before moving into TF–IDF vocabulary analysis.

# Create a directed graph
G = nx.DiGraph()

# Add edges from sender to recipient
for _, row in dk_letters_subset.iterrows():
    sender = row['sender_st']
    recipient = row['recipiant_st']

    # Add edge (if edge already exists, weight will be incremented)
    if G.has_edge(sender, recipient):
        G[sender][recipient]['weight'] += 1
    else:
        G.add_edge(sender, recipient, weight=1)

print(f"Network has {G.number_of_nodes()} nodes (people) and {G.number_of_edges()} edges (letter connections)")

Network has 186 nodes (people) and 226 edges (letter connections)

# Basic network statistics
print("Network Statistics:")
print(f"Number of nodes (people): {G.number_of_nodes()}")
print(f"Number of edges (letter connections): {G.number_of_edges()}")
print(f"Network density: {nx.density(G):.4f}")

# Top senders (out-degree)
top_senders = sorted(G.out_degree(), key=lambda x: x[1], reverse=True)[:10]
print("\nTop 10 Senders:")
for person, count in top_senders:
    print(f"  {person}: {count} letters sent")

# Top recipients (in-degree)
top_recipients = sorted(G.in_degree(), key=lambda x: x[1], reverse=True)[:10]
print("\nTop 10 Recipients:")
for person, count in top_recipients:
    print(f"  {person}: {count} letters received")

Network Statistics:
Number of nodes (people): 186
Number of edges (letter connections): 226
Network density: 0.0066

Top 10 Senders:
  Lange, Julius Henrik: 31 letters sent
  Zahrtmann, Kristian: 20 letters sent
  Laub, Hardenack Otto Conrad: 17 letters sent
  Rosenørn-Lehn, Otto Ditlev: 10 letters sent
  Birkeland, Michael: 10 letters sent
  Hegel, Frederik Vilhelm: 6 letters sent
  Drachmann, Holger Henrik Herholdt: 6 letters sent
  Houstrup, Jens Christian: 5 letters sent
  Gade, Niels Wilhelm: 5 letters sent
  Worsaae, Jens Jacob Asmussen: 5 letters sent

Top 10 Recipients:
  Rosenørn-Lehn, Otto Ditlev: 15 letters received
  Zahrtmann, Kristian: 10 letters received
  Vedel, Peter August Frederik Stoud: 9 letters received
  Laub, Hardenack Otto Conrad: 9 letters received
  Hegel, Frederik Vilhelm: 8 letters received
  Houstrup, Jens Christian: 8 letters received
  Krüger, Hans Andersen: 7 letters received
  Moltke, Frederik Georg Julius: 4 letters received
  Lund, Rasmus: 4 letters received
  Quaade, George Joachim: 3 letters received

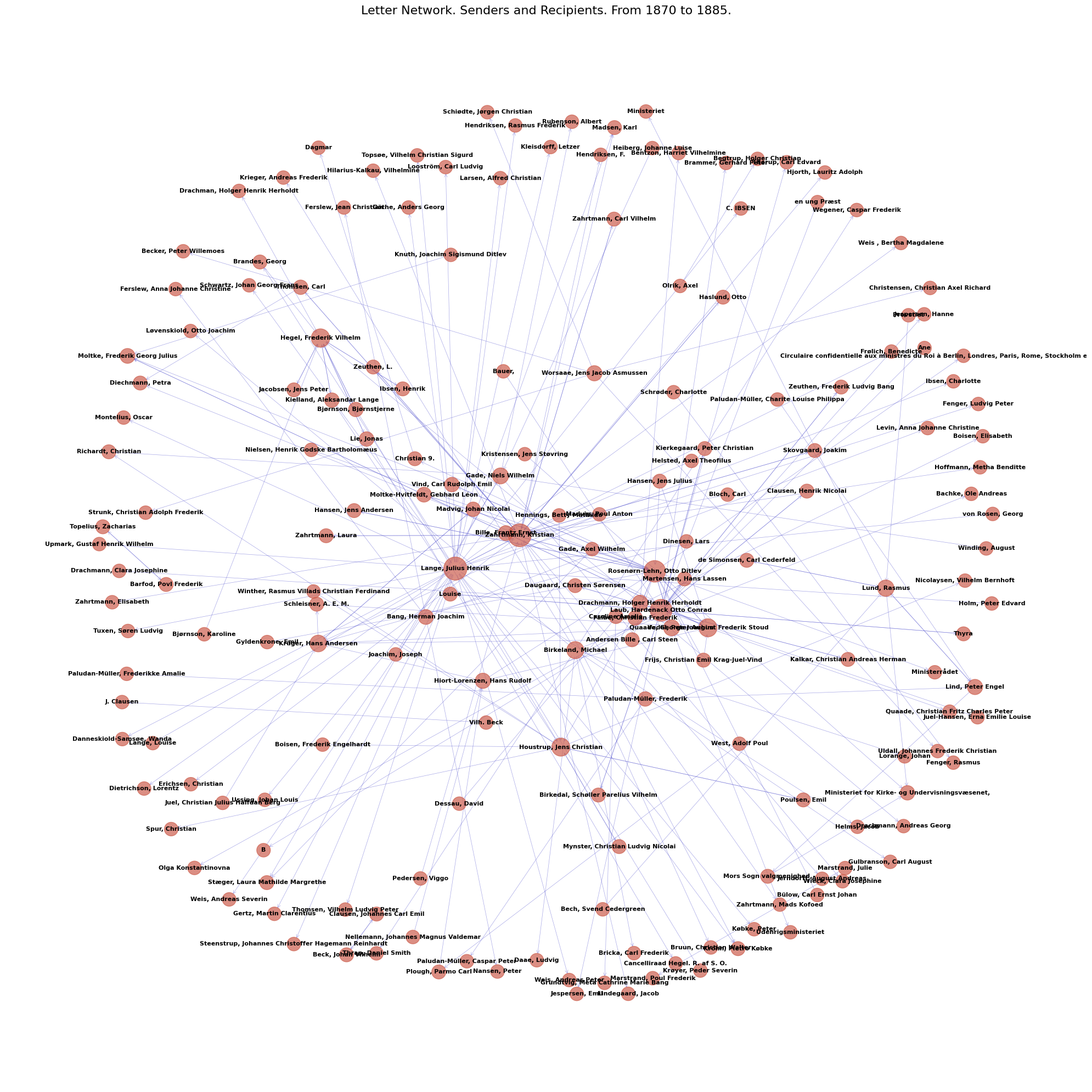

# Visualize the full network (this might be dense)
plt.figure(figsize=(20, 20))

# Use spring layout for visualization
pos = nx.spring_layout(G, k=0.5, iterations=50, seed=42)

# Draw nodes sized by total degree (in + out)
node_sizes = [300 + (G.in_degree(node) + G.out_degree(node)) * 20 for node in G.nodes()]

# Draw the network
nx.draw_networkx_nodes(G, pos, node_size=node_sizes, node_color='#cd5f4e', alpha=0.7)
nx.draw_networkx_edges(G, pos, edge_color='#4e4ecd', alpha=0.5, arrows=True,
                        arrowsize=10, arrowstyle='->', width=0.5)
nx.draw_networkx_labels(G, pos, font_size=8, font_weight='bold')

plt.title(f'Letter Network. Senders and Recipients. From {_from} to {_to}.', fontsize=16)
plt.axis('off')
plt.tight_layout()
plt.show()

# Alternative visualization: Circular layout for top correspondents
top_n = 15
top_nodes_by_degree = sorted(G.nodes(), key=lambda x: G.in_degree(x) + G.out_degree(x), reverse=True)[:top_n]
G_top = G.subgraph(top_nodes_by_degree).copy()

plt.figure(figsize=(16, 16))

# Use circular layout
pos = nx.circular_layout(G_top)

# Node sizes
node_sizes = [800 + (G_top.in_degree(node) + G_top.out_degree(node)) * 40 for node in G_top.nodes()]

# Edge weights
edge_weights = [G_top[u][v]['weight'] for u, v in G_top.edges()]
max_weight = max(edge_weights) if edge_weights else 1

# Draw
nx.draw_networkx_nodes(G_top, pos, node_size=node_sizes, node_color='#cd5f4e', alpha=0.8)
nx.draw_networkx_edges(G_top, pos, edge_color='#4e4ecd', alpha=0.7,
                        arrows=True, arrowsize=20, arrowstyle='->',
                        width=[w/max_weight*4 for w in edge_weights],
                        connectionstyle='arc3,rad=0.1')  # Curved edges
nx.draw_networkx_labels(G_top, pos, font_size=10, font_weight='bold')

plt.title(f'Top {top_n} Correspondents. From {_from} to {_to}.', fontsize=16)
plt.axis('off')
plt.tight_layout()
plt.show()

What did they write about? TF–IDF with scikit-learn

We regroup letters by the top senders, assemble their combined texts, and apply TfidfVectorizer to surface the 15 most distinctive terms for each author. The resulting table spotlights vocabulary that sets the busiest correspondents apart within the chosen period.

# Subset the dataframe again to include only top senders
top_senders_df = dk_letters_subset[dk_letters_subset['sender_st'].isin(top_nodes_by_degree)]

#
# Combine all letters per sender to prepare TF-IDF input
_top_senders_df = top_senders_df.groupby('sender_st')['text_st'].agg(' '.join).reset_index()

# TF-IDF analysis: top 15 distinctive words per sender
texts = _top_senders_df['text_st'].fillna('')

with open('danish_stopwords_18_19_20c.txt') as f:
    _danish_stopwords = f.read().split('\n')
danish_stopwords = [i.strip() for i in _danish_stopwords]

vectorizer = TfidfVectorizer(
    stop_words=danish_stopwords,
    max_df=0.85,
    min_df=1,
    ngram_range=(1, 1),
    sublinear_tf=True
)

tfidf_matrix = vectorizer.fit_transform(texts)
feature_names = vectorizer.get_feature_names_out()

rows = []
for idx, sender in enumerate(_top_senders_df['sender_st']):
    row = tfidf_matrix[idx]
    if row.nnz == 0:
        top_indices = []
    else:
        coo = row.tocoo()
        order = coo.data.argsort()[::-1]
        top_indices = coo.col[order][:15]

    top_words = [feature_names[i] for i in top_indices]
    while len(top_words) < 15:
        top_words.append(None)

    row_dict = {'sender_st': sender}
    for rank, word in enumerate(top_words, start=1):
        row_dict[f'word_{rank:02d}'] = word
    rows.append(row_dict)

sender_tfidf_top_words = pd.DataFrame(rows)
sender_tfidf_top_words

	sender_st	word_01	word_02	word_03	word_04	word_05	word_06	word_07	word_08	word_09	word_10	word_11	word_12	word_13	word_14	word_15
0	Birkeland, Michael	birkeland	rigsarkivet	arkivet	bibl	kongl	verk	bruun	arkiver	storthinget	daae	1613	1660	throndhjem	assessor	1828
1	Drachmann, Holger Henrik Herholdt	emmy	holger	kære	drachmann	derhjemme	nuvel	vilhelmine	literatur	familje	holgers	idetheletaget	justitsraad	cancelliraad	kommende	hegel
2	Gade, Niels Wilhelm	dryp	rée	rubenson	gade	sinfonie	richardt	maries	winding	hobro	judith	im	niels	wir	text	vaade
3	Hegel, Frederik Vilhelm	boghandlere	hegel	collett	lie	honorar	hilsener	handelen	bjørnson	ibsen	manuskriptet	arket	forlægge	udsolgt	oplag	kjærligste
4	Hiort-Lorenzen, Hans Rudolf	hiort	lorenzen	krüger	bismarck	keudell	regering	preussen	samtales	hiortlorenzen	pligtforsømmelse	sønderrives	tabes	hund	west	weserzeitung
5	Houstrup, Jens Christian	hostrup	hillerød	mynster	rønnov	hatting	eva	grundtvig	mynsters	poulsen	prokuratoren	nicolaysen	hennings	oehlenschläger	digtning	hauchs
6	Krüger, Hans Andersen	nordslesvig	ahlmann	nordslesvigere	høimodighed	elsasserne	menig	revision	lempet	quaade	tydskerne	tydskland	vælgeres	gengivelsen	tjenesten	tydske
7	Lange, Julius Henrik	kære	kleisdorff	weis	dietrichson	jul	kbhvn	aarhus	lübke	madrid	thorvaldsen	bonnat	akademiet	gøre	henningsen	tuxen
8	Laub, Hardenack Otto Conrad	laub	viborg	christen	juul	ethik	grundtvigianismen	christus	mynster	huus	martensen	gemakker	schelling	ethiken	guds	sacramenterne
9	Lind, Peter Engel	biskoppen	alters	valgmenigheden	absolution	skriftemaal	syndernes	forladelse	sakramente	folkekirken	lund	forskrifter	altergang	kirkens	ordinationsløfte	højærværdighed
10	Lund, Rasmus	nadveren	biskoppen	altergang	konfirmationen	folkekirkelige	skriftemaalet	højærværdighed	skriftemaal	nadverbordet	provsten	valgmenigheden	altergangen	barnets	forladelse	tilsigelse
11	Quaade, George Joachim	quaade	gesandt	herr	kaiser	excellences	statssecretairen	omhandlede	vedel	vedels	vien	kaiseren	heydebrand	fyrst	rosenørnlehn	kammerherre
12	Rosenørn-Lehn, Otto Ditlev	rosenørnlehn	directeur	ges	gesandt	pragerfredens	depeche	regering	udenrigsminister	dmk	slesvigske	koncept	cette	keis	quaade	vedels
13	Vedel, Peter August Frederik Stoud	quaades	vedel	quaade	gesandt	decazes	kammerherre	heydebrand	sml	kriegers	regering	berlin	frijs	marskallen	baron	fonnesbech
14	Zahrtmann, Kristian	civita	dantino	malt	leonora	skøndt	amalfi	christina	athen	sora	jerndorff	siena	lovisa	haslund	rønne	modeller

Other studies

The dataset invites several complementary lines of inquiry beyond the current network and TF–IDF exploration:

• Compare the TF–IDF signatures with known biographical information about the letter writers to assess whether distinctive vocabulary aligns with documented interests or roles.

• Select alternative cohorts of correspondents (e.g. minor figures, female authors, specific professions) and examine whether their lexical profiles differ from the initial top senders.

• Investigate structural features such as average letter length per sender or per decade to see who writes longer or more concise messages.

• Experiment with sentiment or emotion analysis to gauge tone shifts across time, geography, or correspondent pairs.

• Map the geographic distribution of letters using geo_name_st to identify regional hubs, travel patterns, or networks of influence.
